Дома / ///COUGAR CGR GEXP-650 power supply unit 650 W 20+4 pin ATX ATX Black
Новый COUGAR CGR GEXP-650 power supply unit 650 W 20+4 pin ATX ATX Black

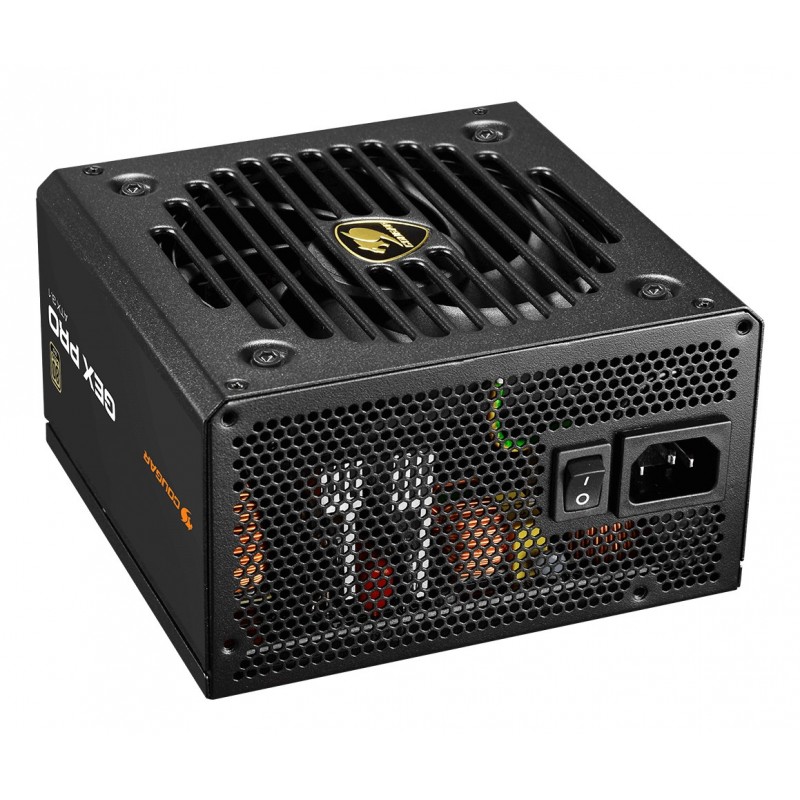

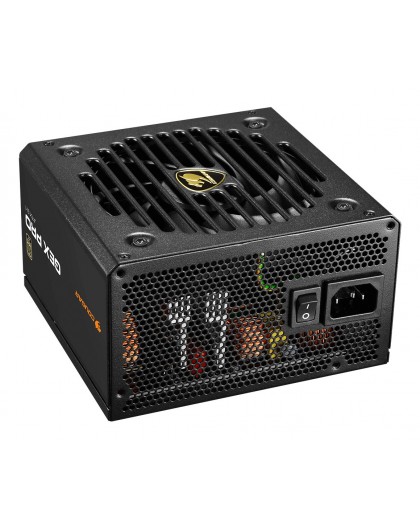

COUGAR CGR GEXP-650 power supply unit 650 W 20+4 pin ATX ATX Black

COUGAR

528827

Новый продукт

23 Элементы

Shipping 2025-11-27 days

129,00 € включая налог.

Certificates
Compliance certificatesFederal Communications Commission (FCC)
Compliance certificatesEAC
Compliance certificatesRoHS
Compliance certificatesCE
Compliance certificatesUKCA
Design
Cooling typeActive
Fan diameter12 cm
Fan locationTop
Number of fans1 fan(s)
On/off switchYes
Product colourBlack
Operational conditions
Operating relative humidity (H-H)20 - 85%
Operating temperature (T-T)10 - 40 °C
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-40 - 70 °C
Packaging data
Package depth330 mm
Package height107 mm
Package typeBox
Package weight2.07 kg
Package width215 mm
Performance
80 PLUS certification80 PLUS Gold
ATX version3.1
Bearing technologyHDB
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
Cabling typeFully-Modular
CPU power cable length70 cm
CPU power connector (4+4 pin)Yes
Motherboard power cable length61 cm
Motherboard power connector20+4 pin ATX
Number of PATA power connectors3
Number of SATA power connectors8
PCI Express connectorYes
PCI Express power connectors (12+4 pin)1
PCI Express power connectors (12+4 pin) cable length650 mm
PCI Express power connectors (6+2 pin)2
SATA power cable length400
SATA power cable length760 mm
SATA power cable length640
SATA power cable length520
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Combined power (-12V)3.6 W
Combined power (+12V)649.2 W
Combined power (+3.3V)100 W
Combined power (+5V)100 W
Combined power (+5Vsb)15 W
Efficiency91%
Input current10-5 A
Max output current (-12V)0.3 A
Max output current (+12V)54.1 A
Max output current (+3.3V)20 A
Max output current (+5V)20 A
Max output current (+5Vsb)3 A
Power protection featuresUnder voltage
Power protection featuresOver current
Power protection featuresOver power
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresOverheating
Total power650 W
Weight & dimensions
Depth140 mm
Height56 mm
Weight2.05 kg
Width150 mm
