New FSP FSP460-70PFL(SK) power supply unit 460 W 24-pin ATX ATX Grey

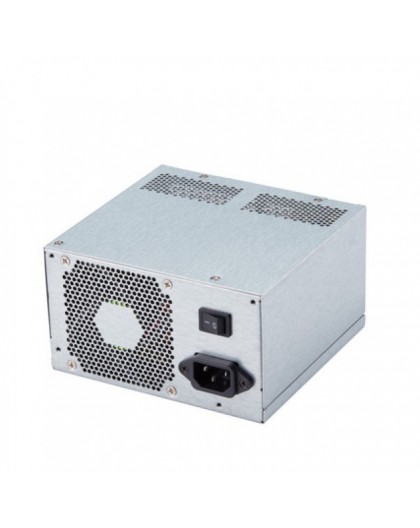

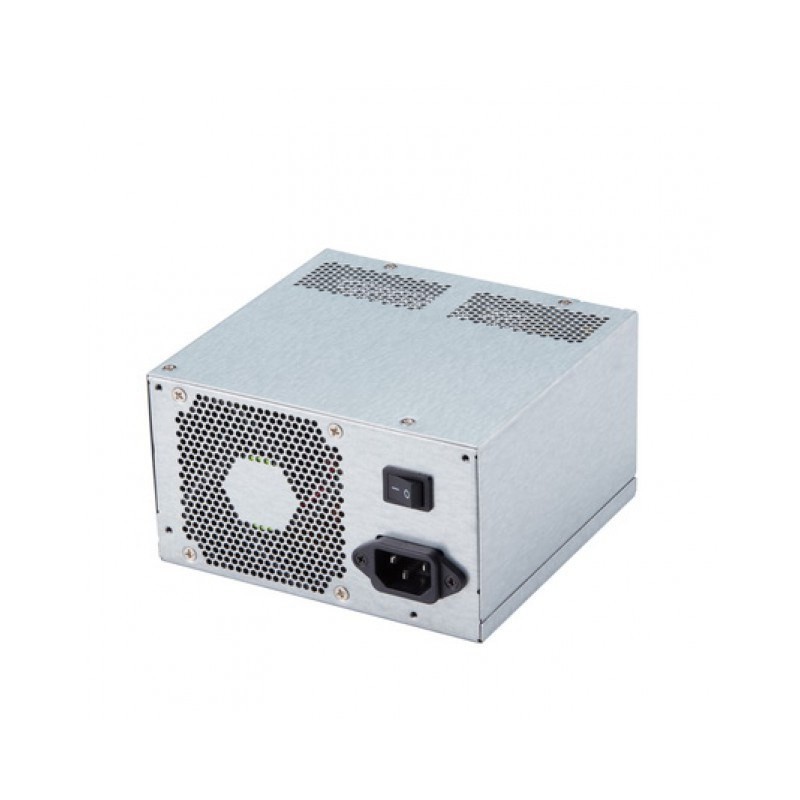

FSP FSP460-70PFL(SK) power supply unit 460 W 24-pin ATX ATX Grey

Fortron

9PA4604401

New product

5 Items

Shipping 2025-11-27 days

109,00 € tax incl.

Certificates
CertificationUL/cUL, CE, FCC, CCC, CB, EAC, TÜV EN 62368-1, UKCA
Design
Cooling typeActive
Fan diameter8 cm
Number of fans1 fan(s)
Product colourGrey
Operational conditions
Operating relative humidity (H-H)0 - 85%
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)0 - 95%
Storage temperature (T-T)-20 - 80 °C
Performance
80 PLUS certification80 PLUS Bronze
Mean time between failures (MTBF)100000 h
Power supply unit (PSU) form factorATX
PurposeNAS/storage server
Ports & interfaces
ATX Power connector (24-pin)Yes
Cabling typeNon-Modular
Motherboard power connector24-pin ATX
Number of SATA power connectors2
Power
AC input frequency47 - 63 Hz
AC input voltage90 - 264 V
Hold time16 ms
Max output current (-12V)0.5 A
Max output current (+12V1)18 A
Max output current (+12V2)18 A
Max output current (+3.3V)22 A
Max output current (+5V)16 A
Max output current (+5Vsb)3 A
Power Factor Correction (PFC) typeActive
Power protection featuresOver voltage
Power protection featuresOver current
Power protection featuresOverheating
Total power460 W
Weight & dimensions
Depth140 mm
Height86 mm
Width150 mm
