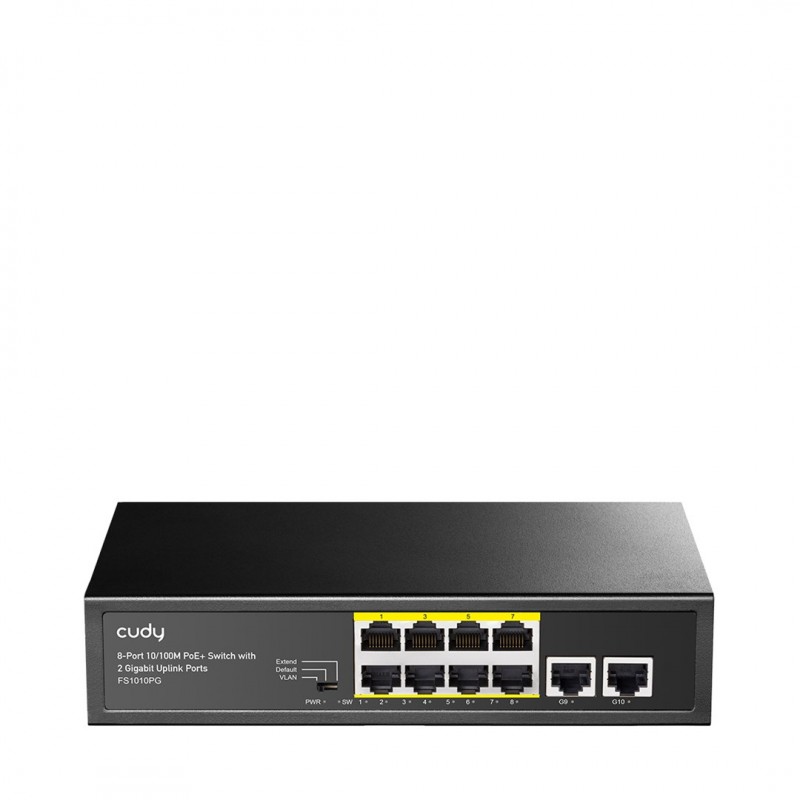

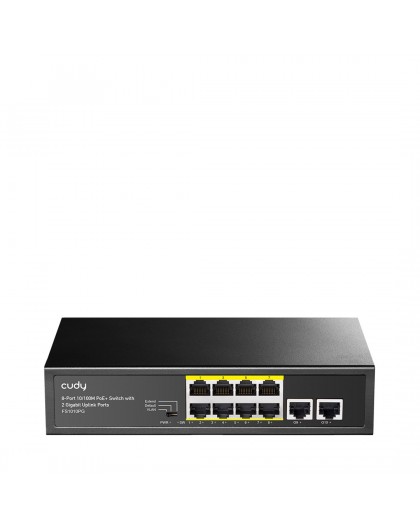

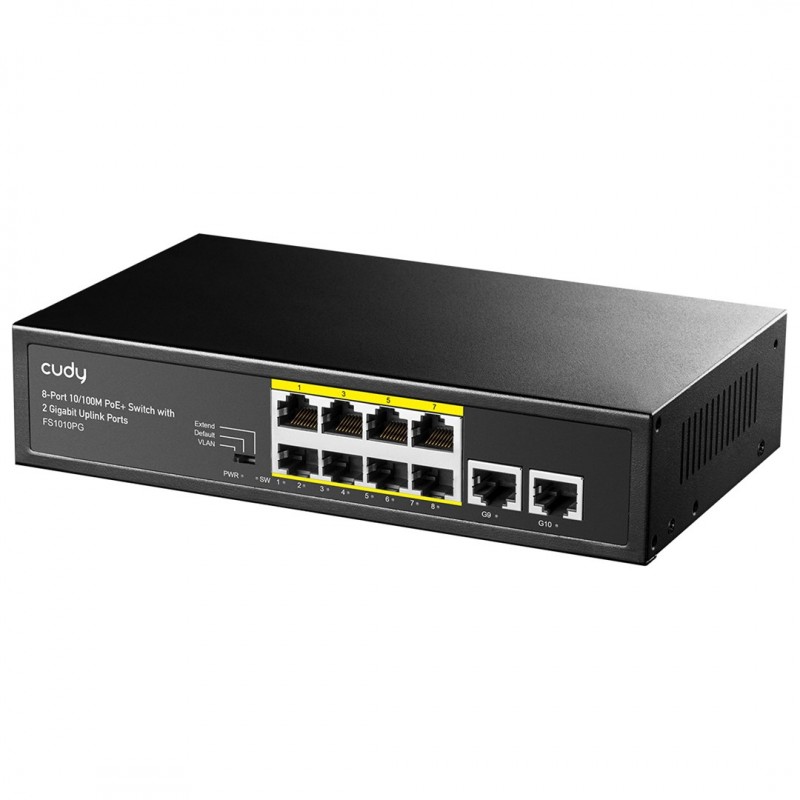

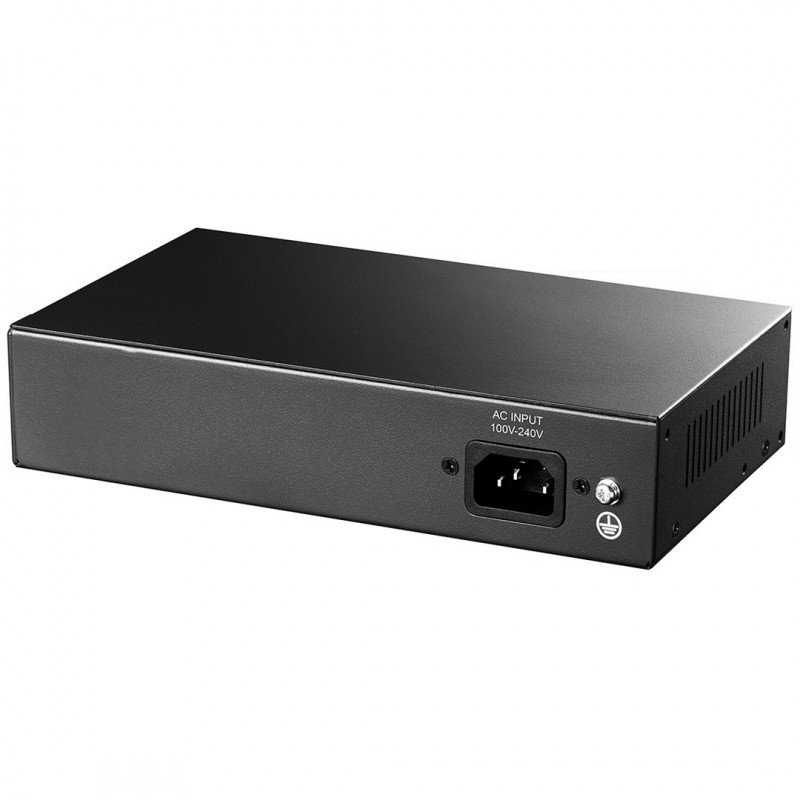

Cudy FS1010PG network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black
FS1010PG
New product
38 Items
Shipping 2025-11-19 days
39,00 € tax incl.
| Data transmission | |
| Forwarding rate | 1.48 Mpps |
| Jumbo frames | 1528 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Packet buffer memory | 0.25 MB |
| Store-and-forward | Yes |
| Design | |
| Housing material | Metal |
| LED indicators | Link |
| LED indicators | Activity |
| LED indicators | Power |
| LED indicators | PoE |
| Product colour | Black |
| Network | |
| Cable types supported | Cat4 |
| Cable types supported | Cat5 |
| Cable types supported | Cat5e |
| Cable types supported | Cat3 |
| Copper ethernet cabling technology | 100BASE-TX |
| Copper ethernet cabling technology | 10BASE-T |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3az |
| VLAN support | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Other features | |
| Bandwidth | 2 Gbit/s |
| Packaging content | |
| Cables included | AC |
| Performance | |
| Fanless | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Plug and Play | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | AC-in jack |
| Uplink ports quantity | 2 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power source | AC |
| Power supply included | Yes |
| Surge protection | Yes |
| Surge protection voltage | 4 kV |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Safety warning | |
| Warnings | Do not open the case or try to repair it yourself. |
| Warnings | The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations. |
| Weight & dimensions | |
| Depth | 150 mm |
| Height | 44 mm |
| Width | 220 mm |
